RaisedHaze's First Integration Rejuvenation

Moderators: Nitrew, evtsteward

RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » February 6th, 2013, 3:30 pm

I'll keep this as a placeholder for when I dig up my old posts of my build.
________________________

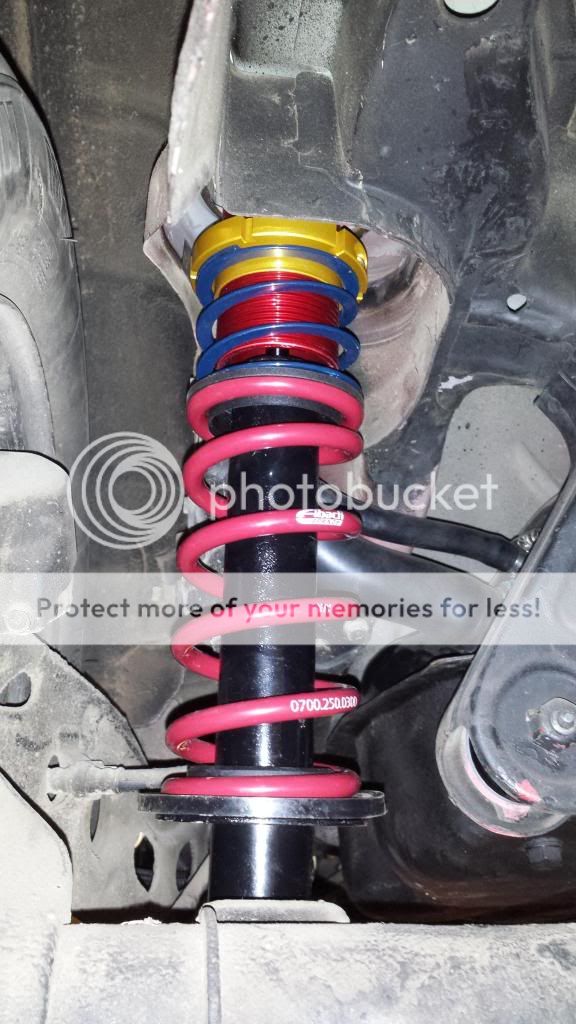

1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN

Re: RaisedHaze's First Integration Rejuvenation

Postby Mr NW Classic » February 7th, 2013, 1:07 am

:)
"Your one stop shop for pre-1988 Honda/Acura parts"
206-940-8173 www.nwclassichonda.com

72-87 Civic
84-87 CRX
86-89 Integra
79-87 Prelude
76-89 Accord
Mr NW Classic
NW Classic Honda

Posts: 381
Joined: September 13th, 2012, 4:33 am
Location: Seattle, WA

Re: RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » February 7th, 2013, 8:23 pm

I picked up this car back in 2007 from the U of M with less than 100 total miles on it since it was donated new back in 1986 from Bloomington Acura. The car was used as a kinesiology drunk driving simulation car without any running gear and a whole bunch of sensors and stuff wired up in it for the simulation so the driver got feedback like the car was actually moving. At the time, I was rebuilding a motor from my first car ever (still a special place in my heart) which was a 1988 Integra and had to pick it up since it made so much sense. Please excuse all the crappy cell phone pictures.

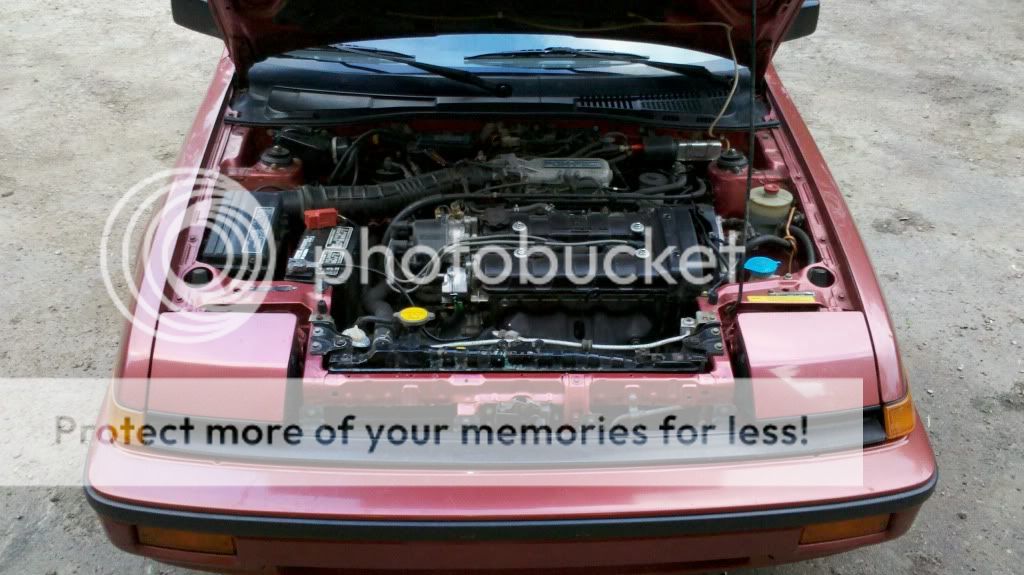

Here's how it sat as of 2010:

Interior:

But I decided to pick up all the necessary parts for a B-swap:


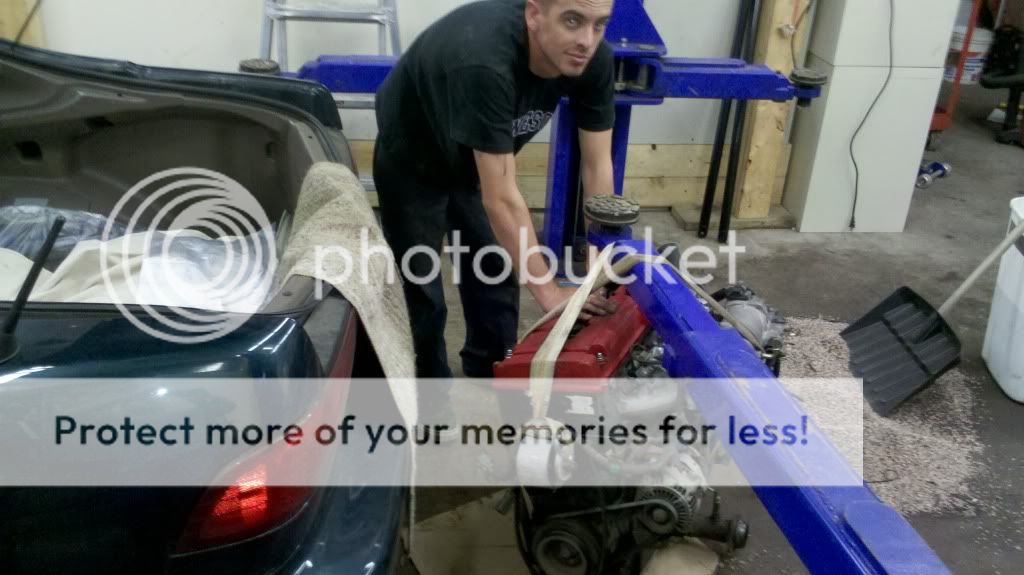

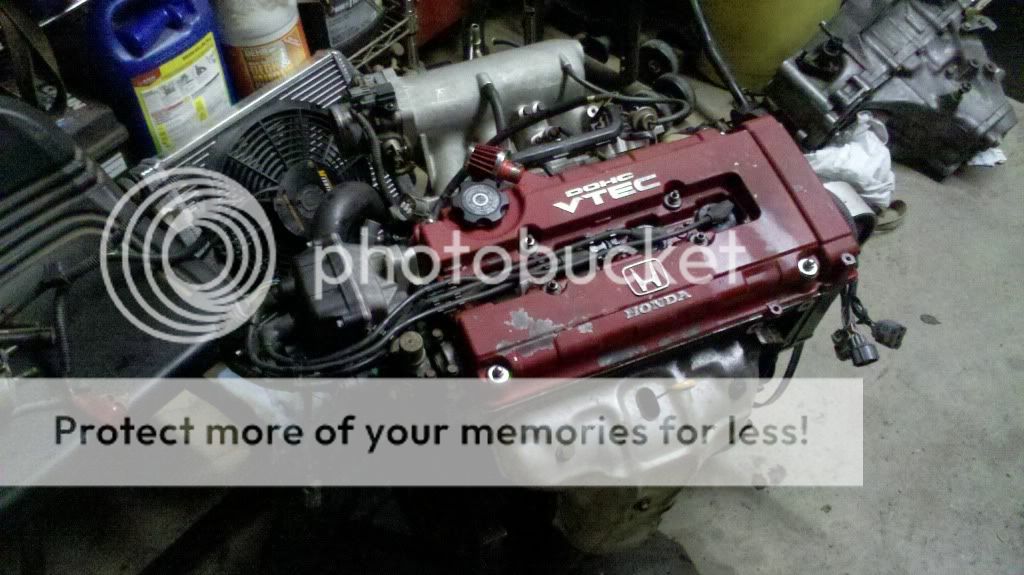

Found a guy on a local honda forum selling this motor (B18C1):


Picked it up in my 1998 Integra!


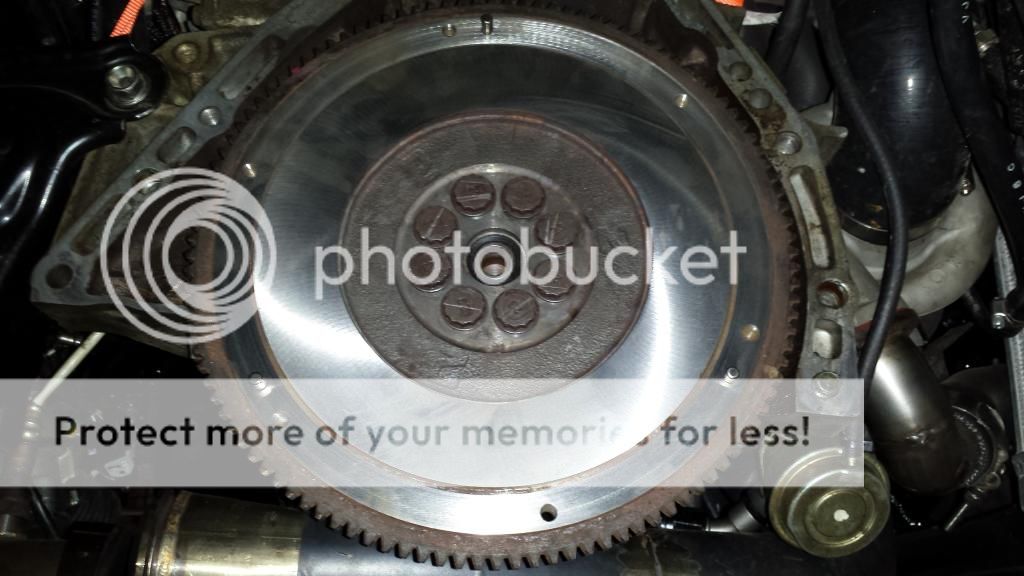

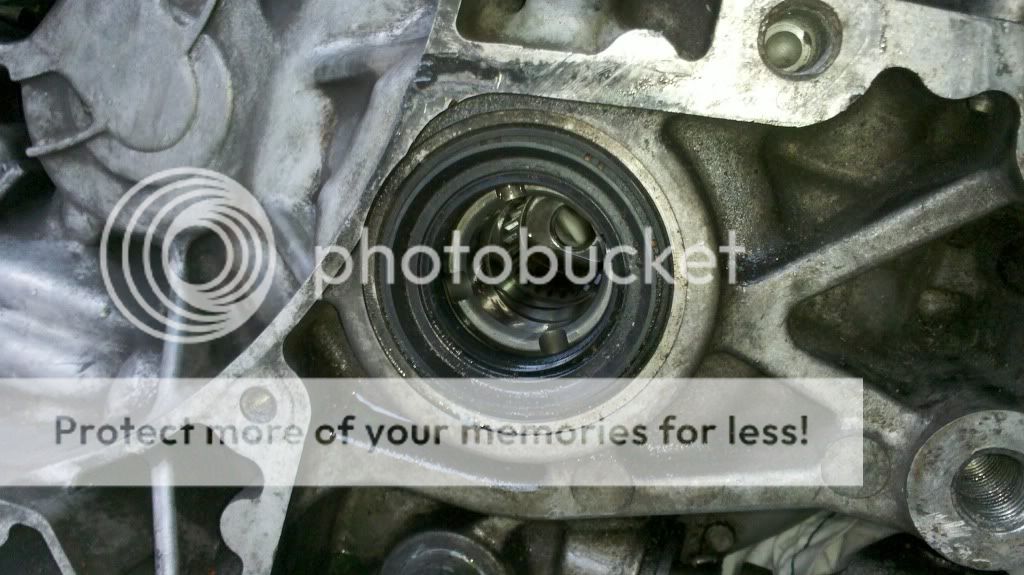

...and this tranny (B16 with quaife lSD):


...to replace this:



With this:


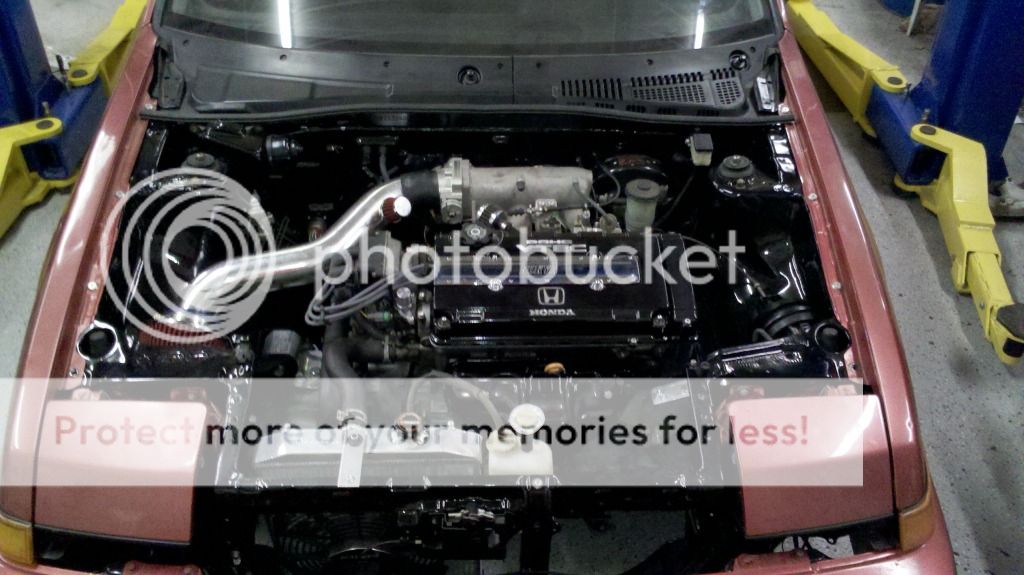

This thing is has been a blast!
Here's the baseline dyno results


...and a photo of her airing out.

That's as far as I got in summer 2012. I will try to find pictures of the steps leading to that point.

Next stesps in the process are finalizing the turbo build with a goal of 300 whp - then off to paint - hopefully end of the season 2013.
Last edited by raisedhaze on February 8th, 2013, 12:30 am, edited 2 times in total.
________________________
1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN

Re: RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » February 7th, 2013, 8:28 pm

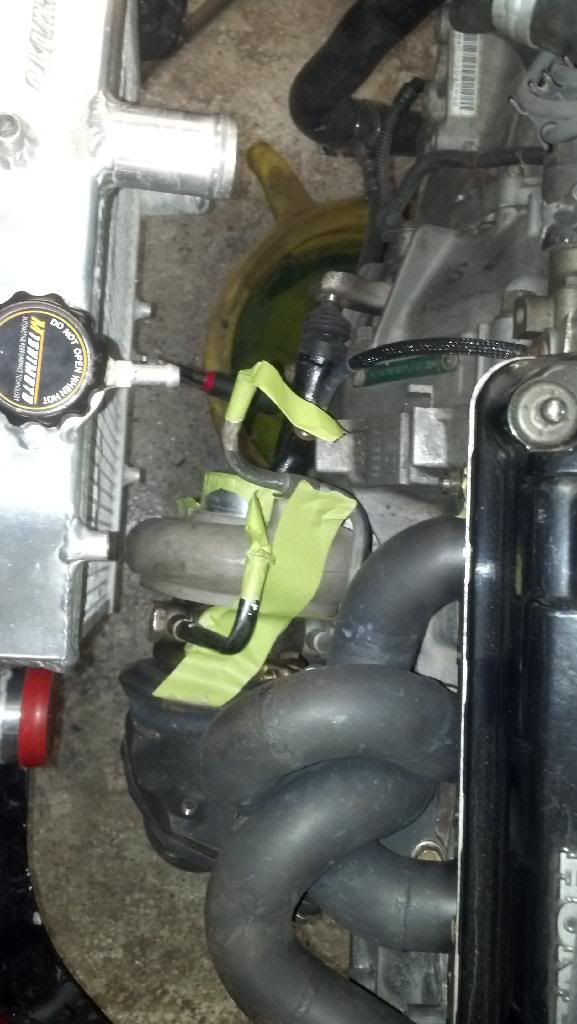

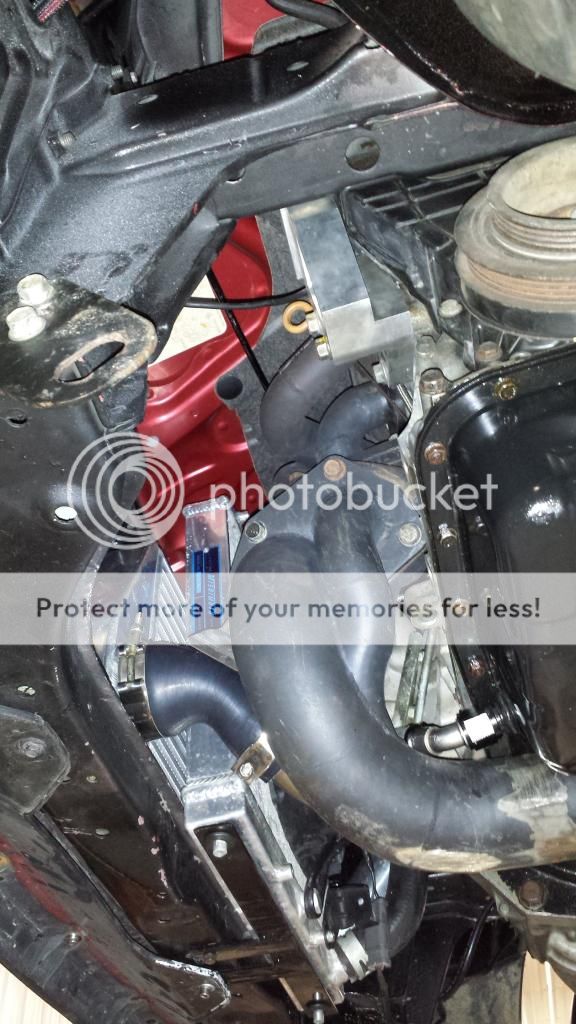

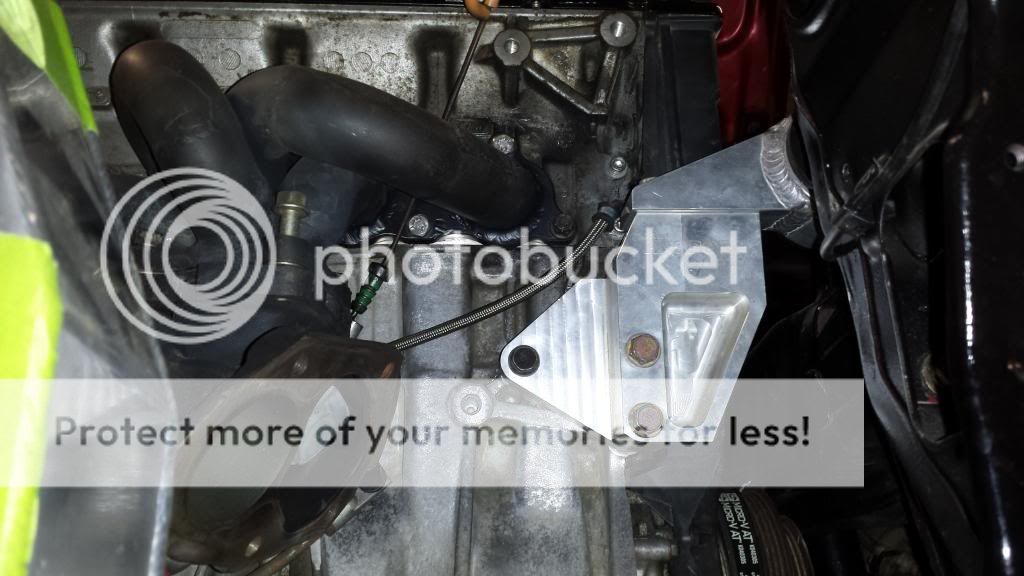

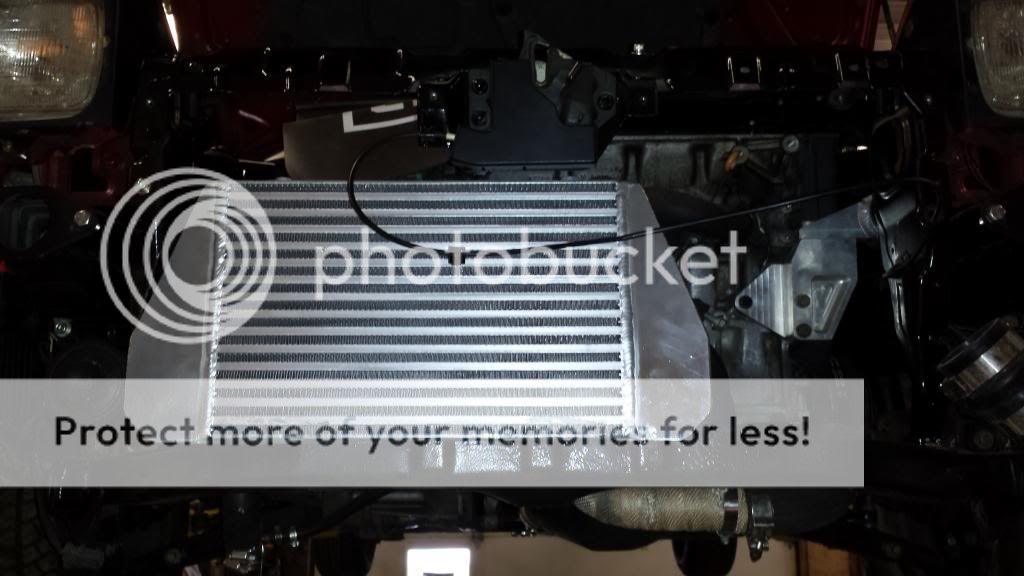

Fitting the manifold and turbo:

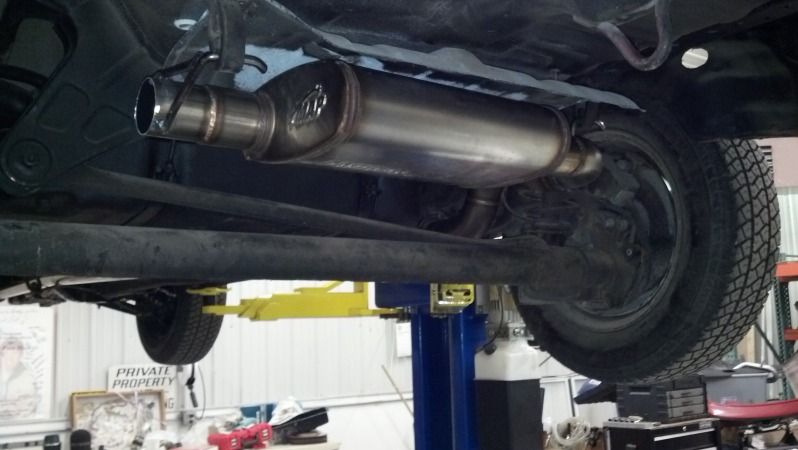

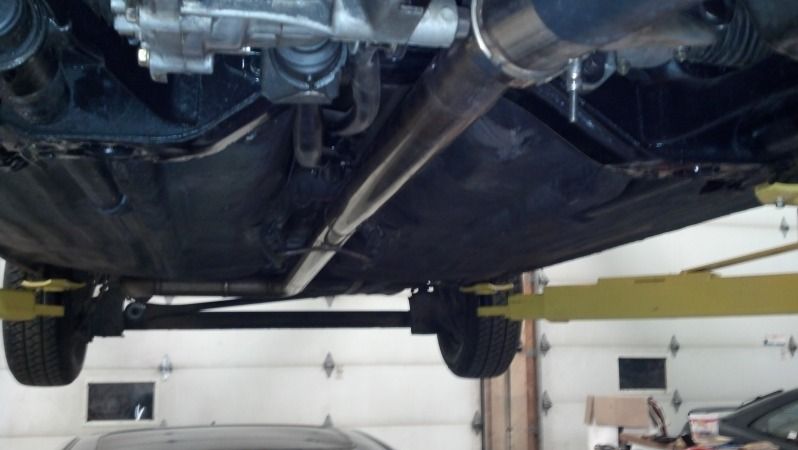

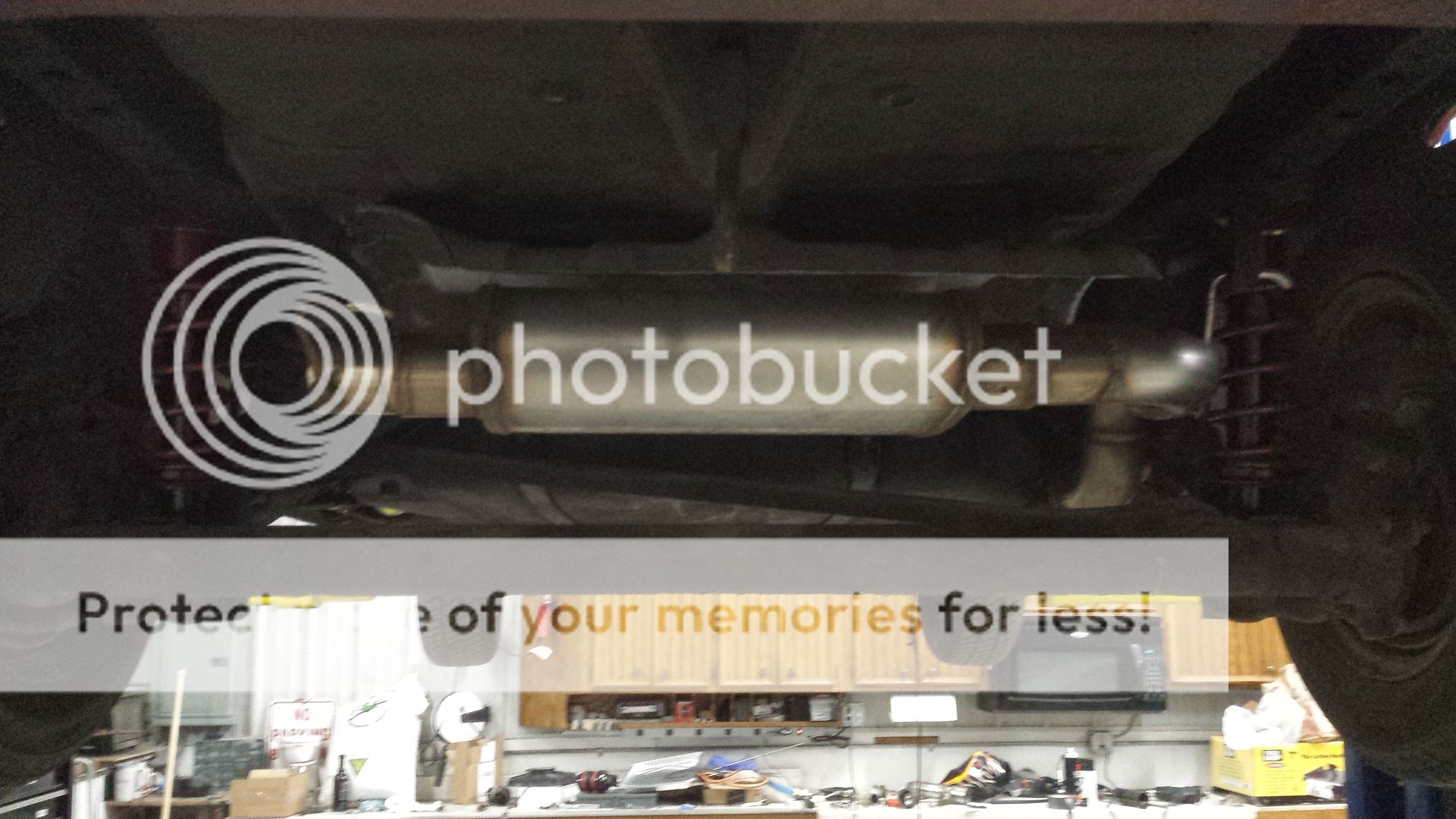

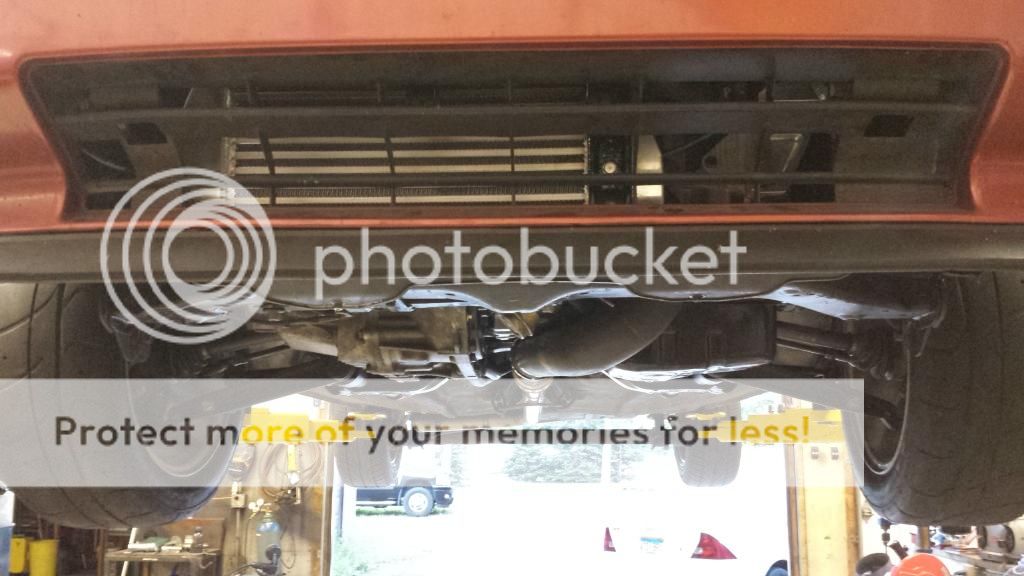

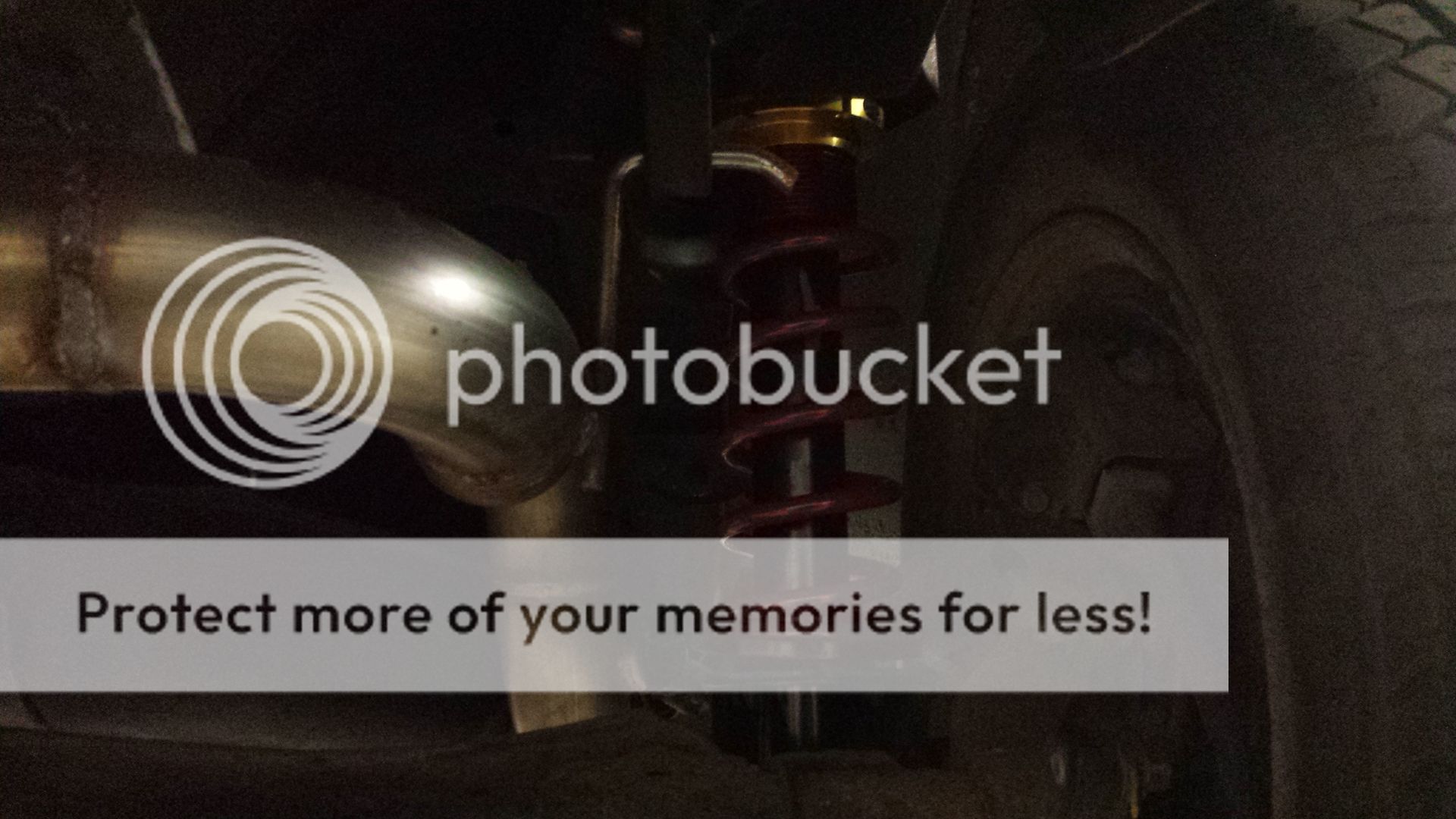

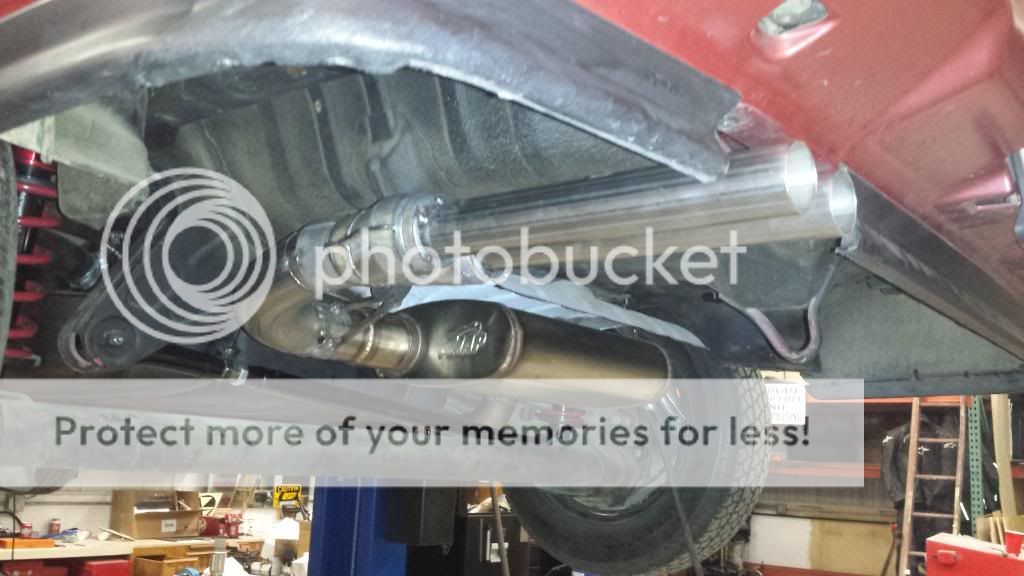

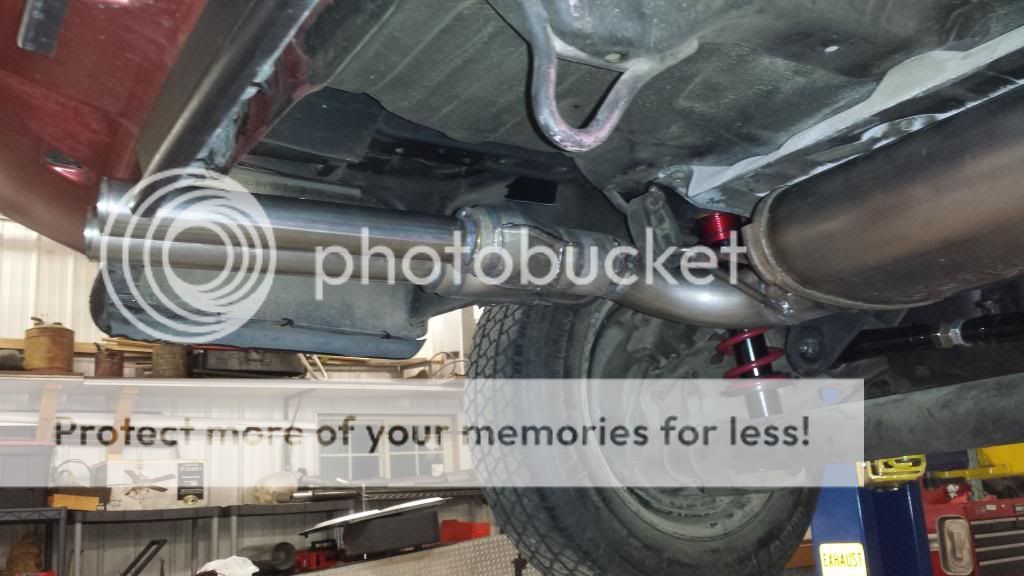

Making a sweet stainless 2.5" exhaust fit that used to be on a DC Integra. It took a couple hours but fit very well in the end.


________________________
1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN

Re: RaisedHaze's First Integration Rejuvenation

Postby Clindayen » February 12th, 2013, 4:45 am

Very nice, inspirational!
Got my license 8/11/12, Since then:
1990 DA9 Acura Integra GS (Sold)
1997 EJ8 Honda Civic EX (Sold)
1991 DA9 Acura Integra RS (Sold)
1992 DB2 Acura Integra GS-R (Out Of Commission atm)
1988 DA3 Acura Integra LS (Daily)
Clindayen
G1 n00b

Posts: 56
Joined: September 11th, 2012, 6:29 am
Location: Las Vegas, NV

Re: RaisedHaze's First Integration Rejuvenation

Postby Clindayen » February 12th, 2013, 4:45 am

Very nice, inspirational!
Got my license 8/11/12, Since then:
1990 DA9 Acura Integra GS (Sold)
1997 EJ8 Honda Civic EX (Sold)
1991 DA9 Acura Integra RS (Sold)
1992 DB2 Acura Integra GS-R (Out Of Commission atm)
1988 DA3 Acura Integra LS (Daily)
Clindayen
G1 n00b

Posts: 56
Joined: September 11th, 2012, 6:29 am
Location: Las Vegas, NV

Re: RaisedHaze's First Integration Rejuvenation

Postby VAPRAI » February 13th, 2013, 7:50 pm

Clean B swap. Really interesting background on this 86.
Did it come with that 88-89 style wheel and interior?
VAPRAI
G1 n00b

Posts: 81
Joined: September 11th, 2012, 4:17 am
Location: Arizona

Re: RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » February 15th, 2013, 7:28 pm

VAPRAI wrote:Clean B swap. Really interesting background on this 86.
Did it come with that 88-89 style wheel and interior?


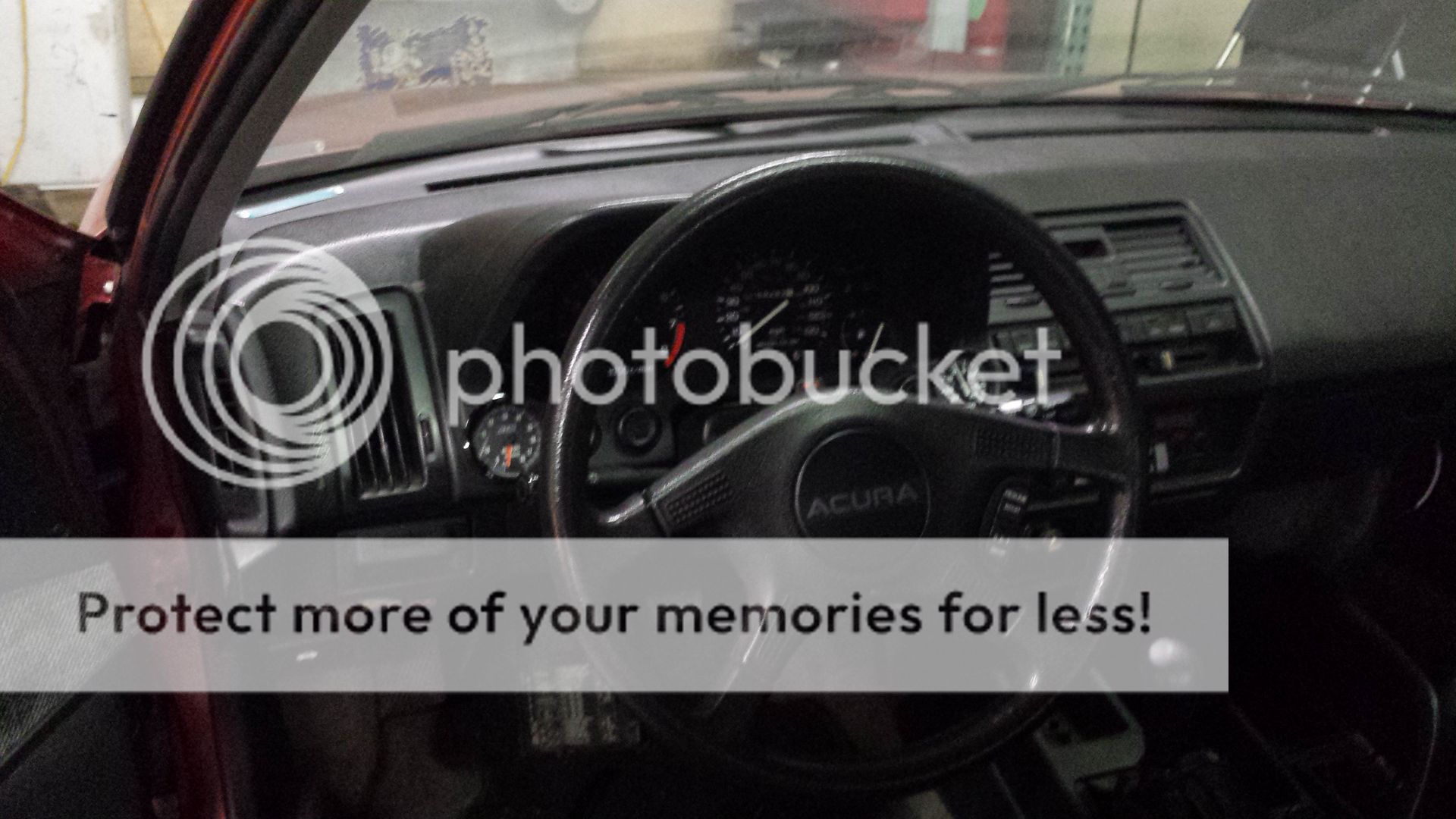

No, I decided to swap in the dash and steering wheel from another Integra I owned (my first car, 1988 4-door) to get AC and Cruise control. The dash that came with it had some issues since they just hacked through the firewall to route some wires and such. I spent a LONG time filling in and smoothing out all the holes on the firewall where they had hacked things apart.
________________________
1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN

Re: RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » February 21st, 2013, 2:36 pm

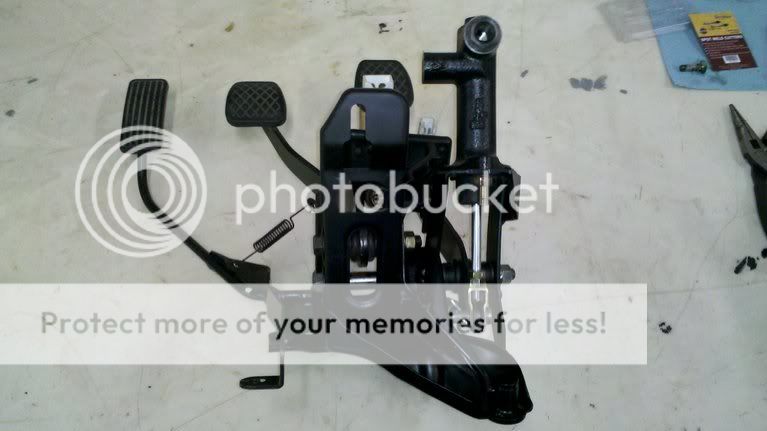

Here's how I fit the hydraulic clutch master set up on the pedal assembly. I ended up cutting the part the cable mounts to down a bit so the ratio would be correct for the stroke of the cylinder I was using. The rest was just playing around with steel until it all fit right.

Before PC (powder coat)


After PC


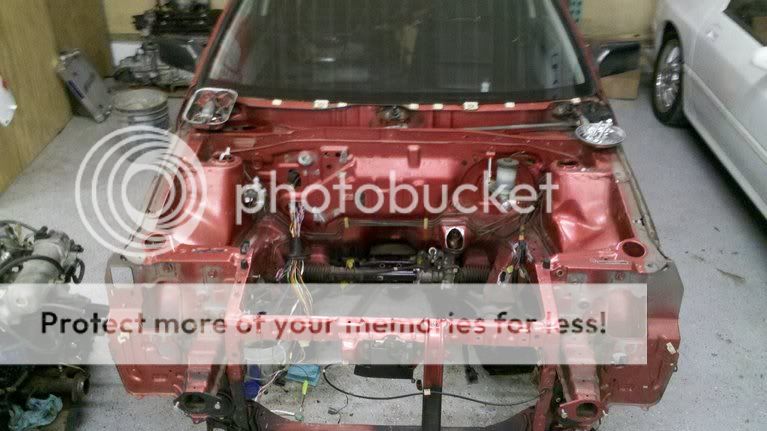

More pulling things apart, including relocating the underhood fusebox to the glovebox.

________________________
1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN

Re: RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » February 21st, 2013, 2:36 pm

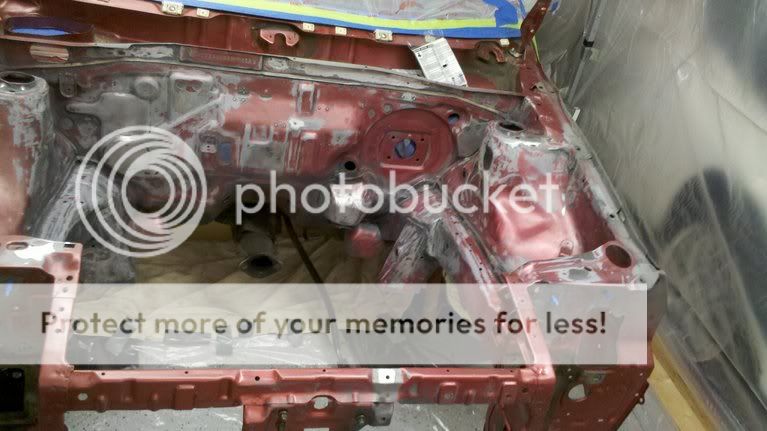

More progress with the bay. A little bit of welding and grinding.


This is where I had to add clearance for the B-series alternator pulley finally boxed in.


mmm...Zinc weld-thru primer.
________________________
1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN

Re: RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » February 21st, 2013, 2:40 pm

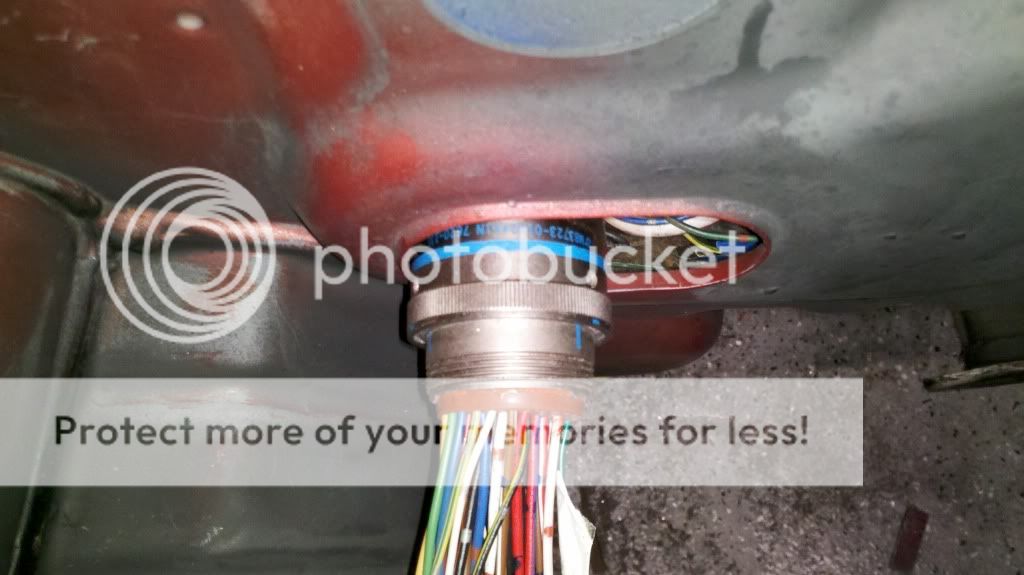

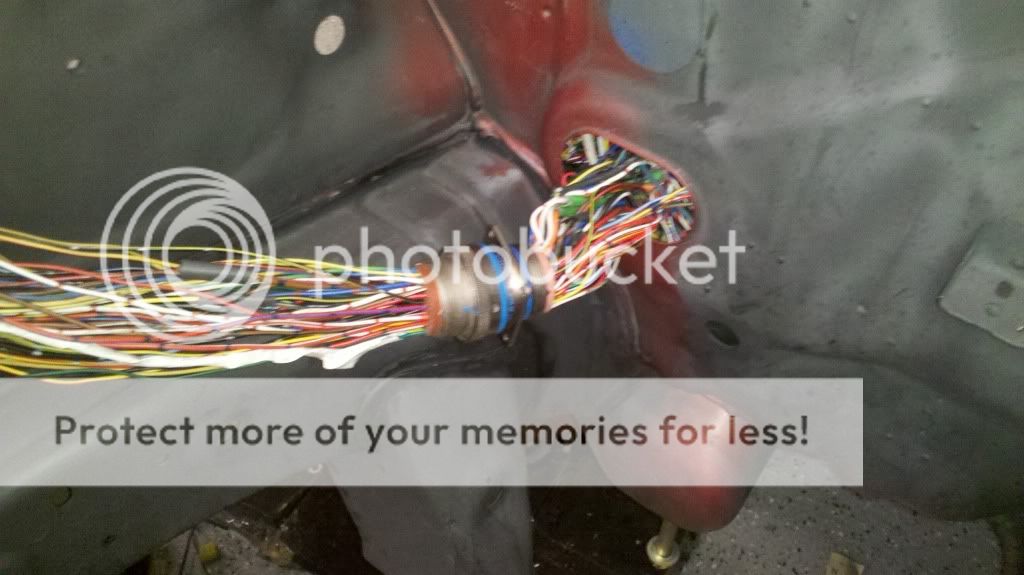

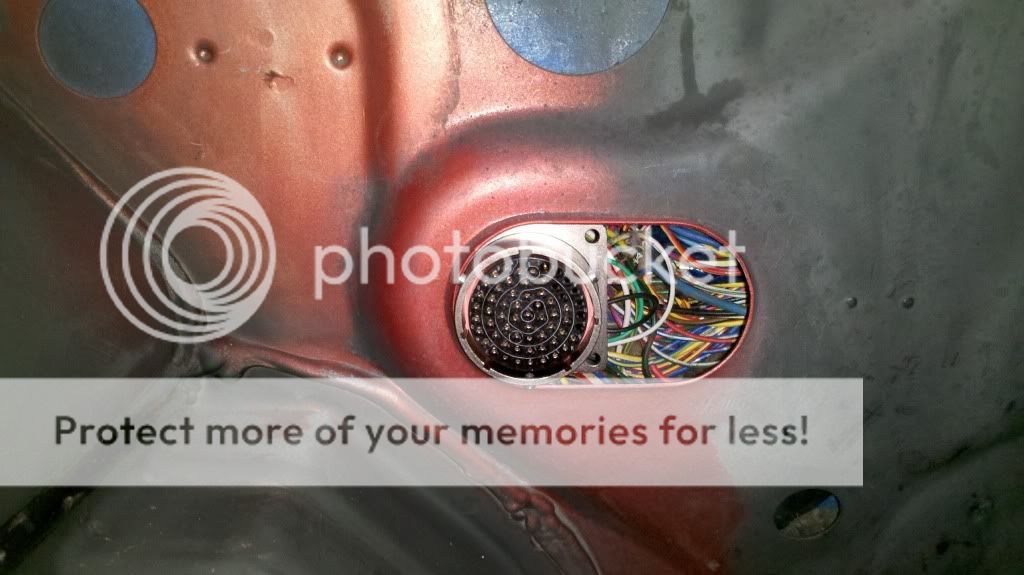

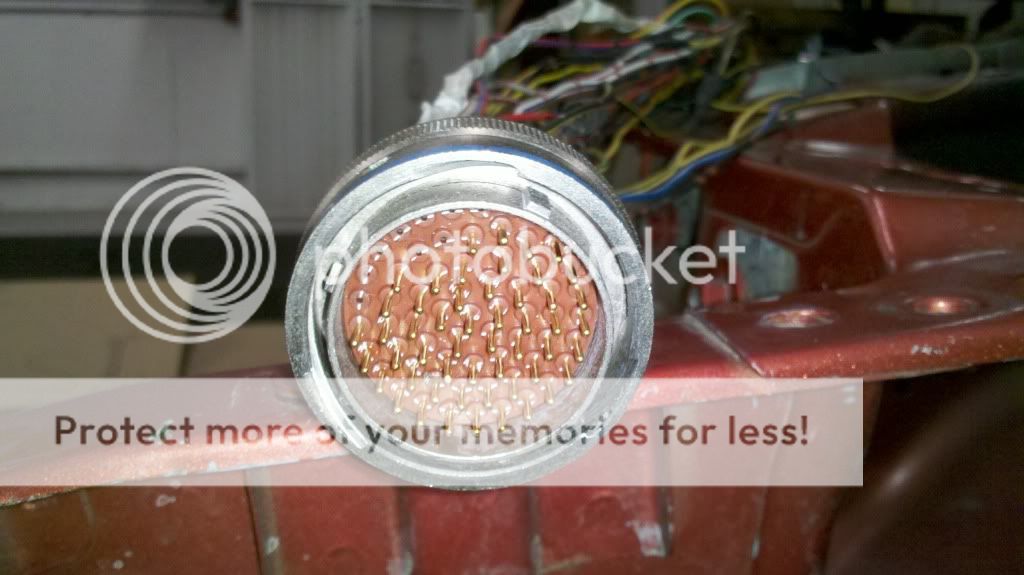

I spent a TON of time wiring up a mil-spec connector at the firewall, but it turned out nice.






This gives me an appreciation for what is charged when ordering a harness from Chase Bays or Rywire.

This was before filling and smoothing that section of the firewall out. After I finished filling it in, I ended up drilling new holes needed for the milspec connector and two thru-panel connectors I'm using for the starter and alternator. I moved the thru-panel connectors down so they wouldn't be visible.
________________________
1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN

Re: RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » February 21st, 2013, 2:41 pm

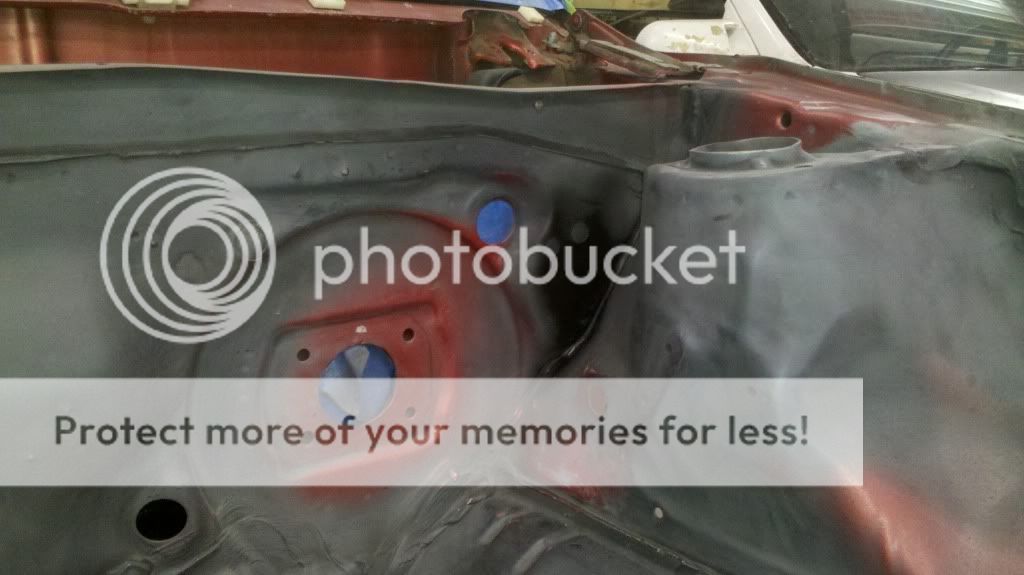

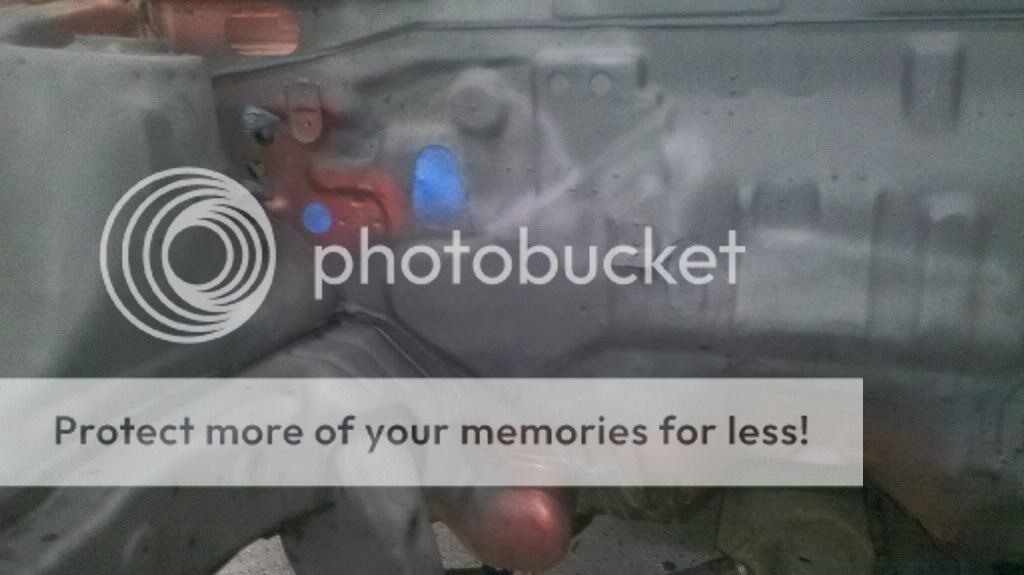

Some more progress on the firewall.


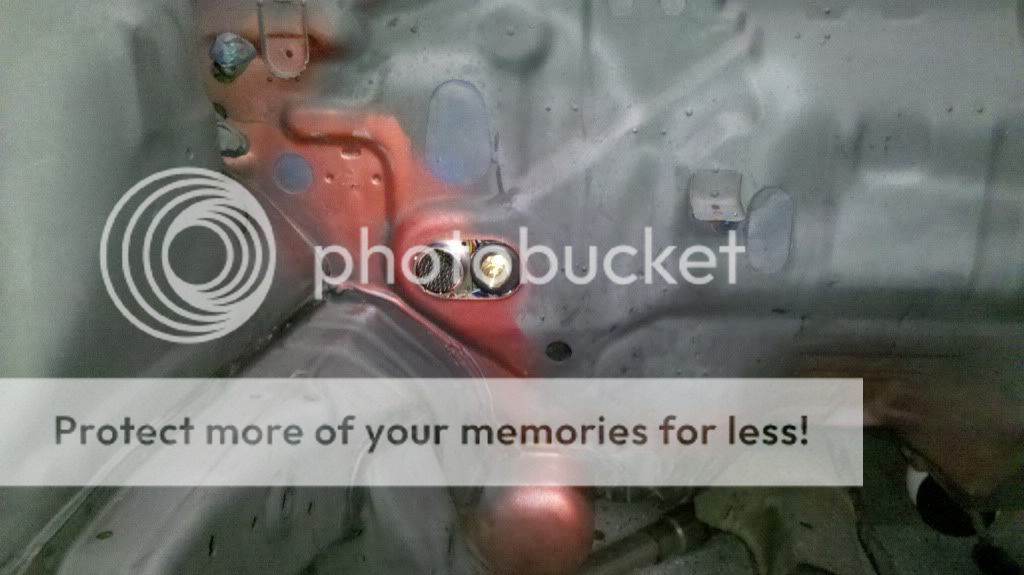

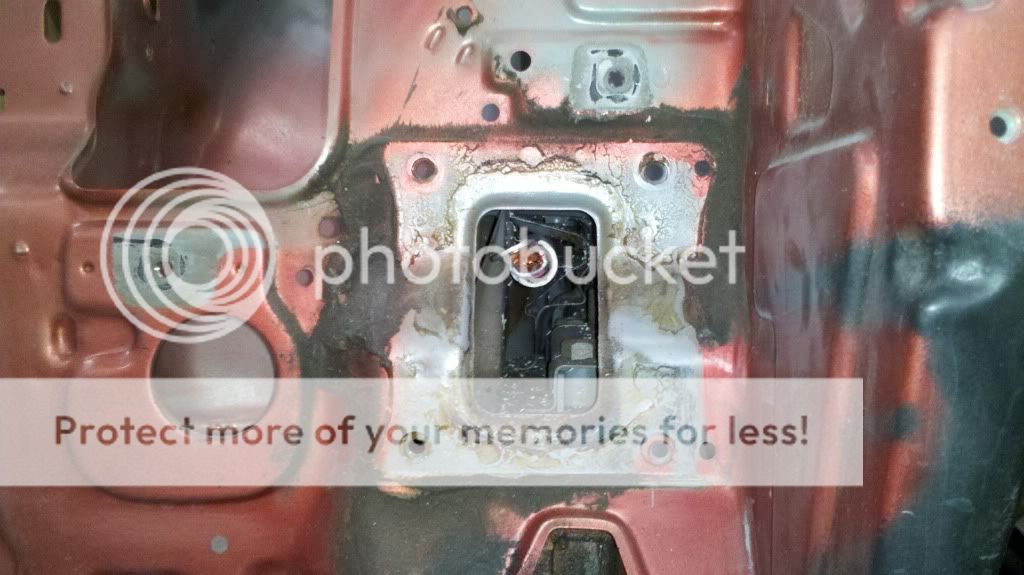

Shaved AC hole:


Routed the power cable through the frame rail.


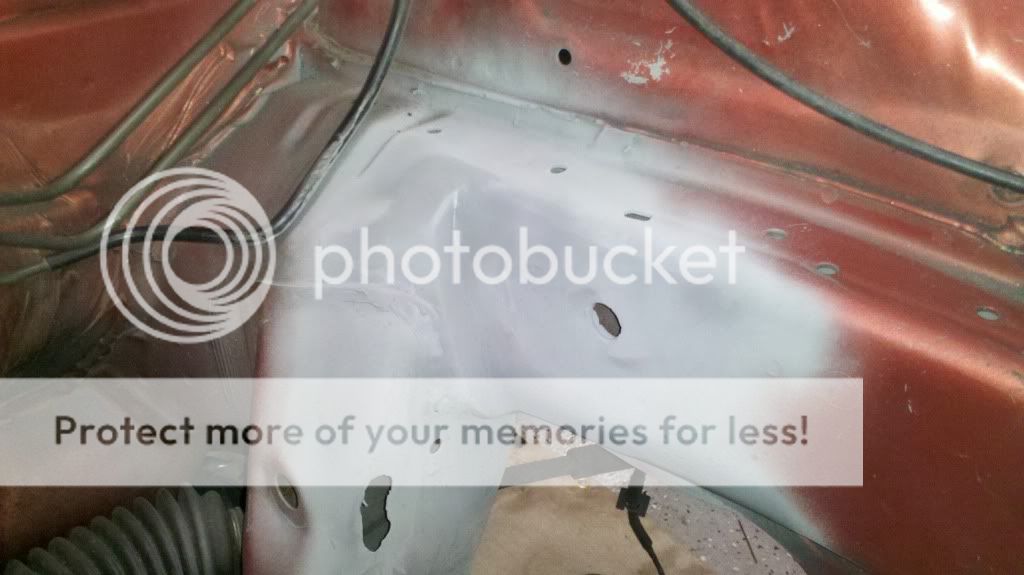

And filled the chassis harness wire hole on the driver's side of the firewall.

________________________
1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN

Re: RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » February 21st, 2013, 2:43 pm

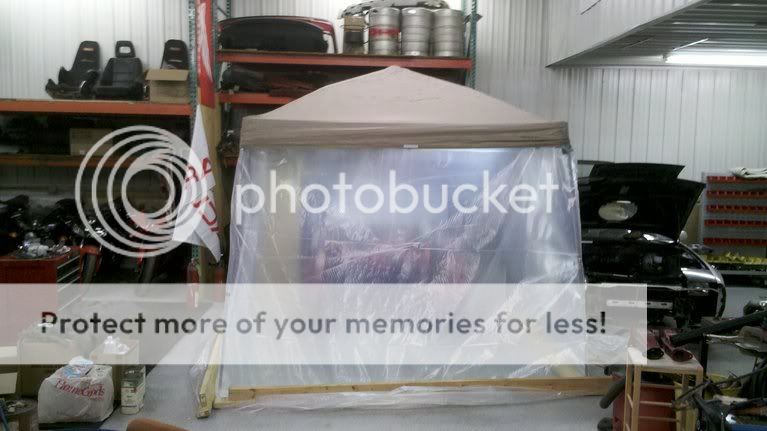

Made a little spray booth in the garage.


Then I sprayed primer, base and clear to get this:
(I am in no way a professional painter, but I figured I can always keep the hood closed if I messed this up)

Prepped:

Primed:

I didn't get a picture after base coat since I only had like 25 minutes to get ready to clear and that meant I had to quickly clean up and change over the spray gun to clear coat.

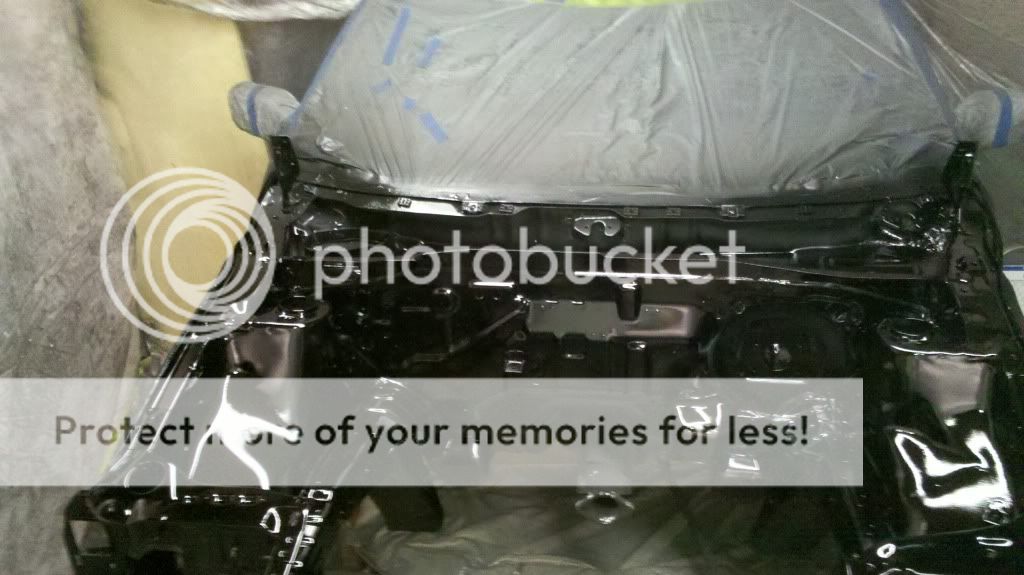

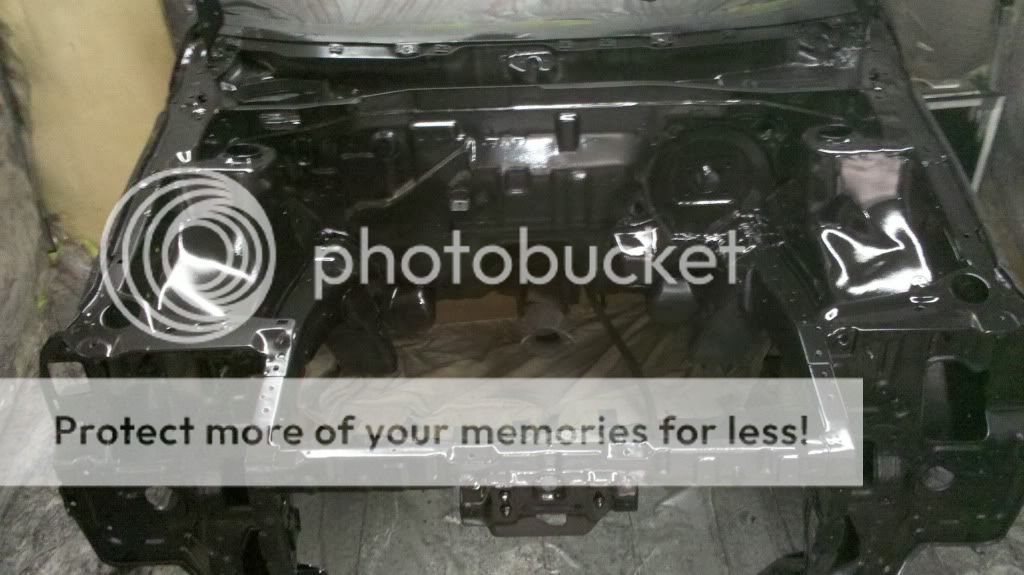

Cleared:
________________________
1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN

Re: RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » February 21st, 2013, 2:45 pm

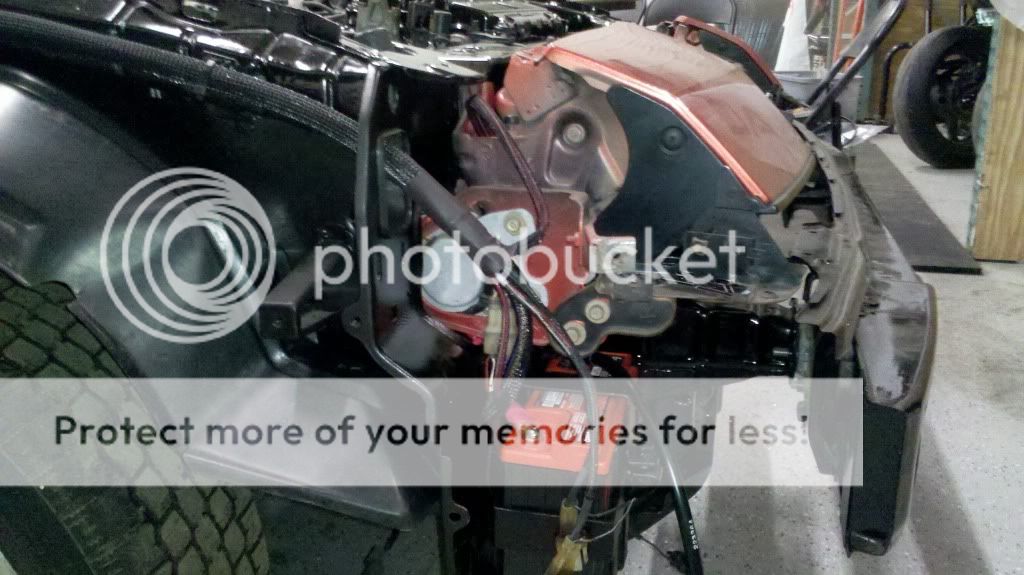

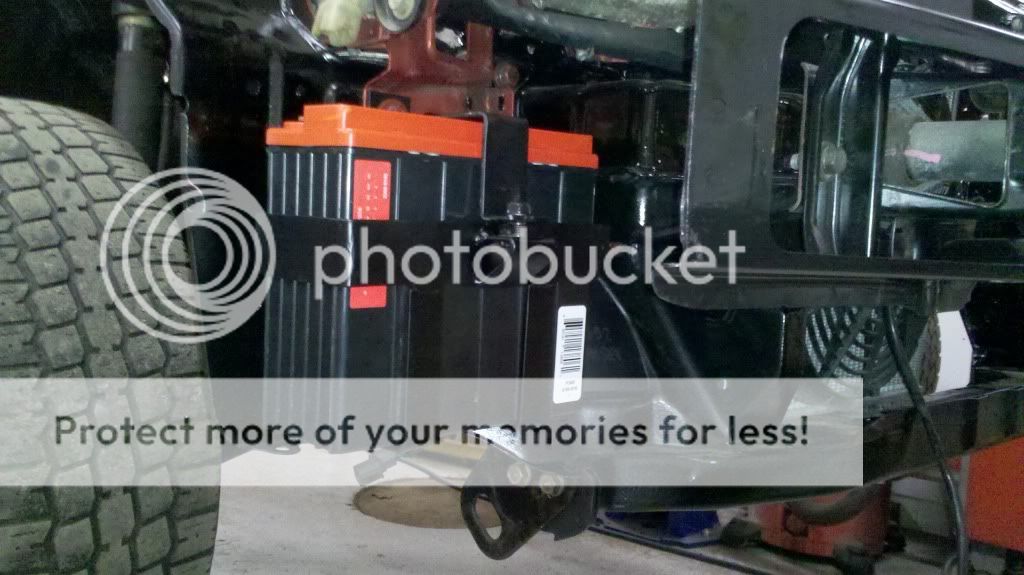

New battery mount inside passenger side of front bumper:

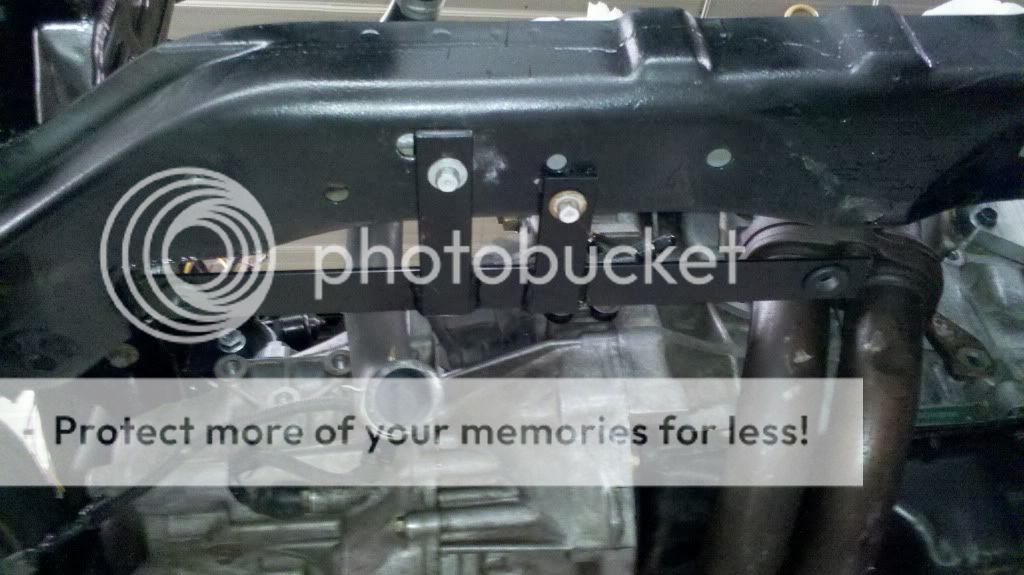

And a half-sized radiator bracket:
________________________
1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN

Re: RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » February 21st, 2013, 2:47 pm

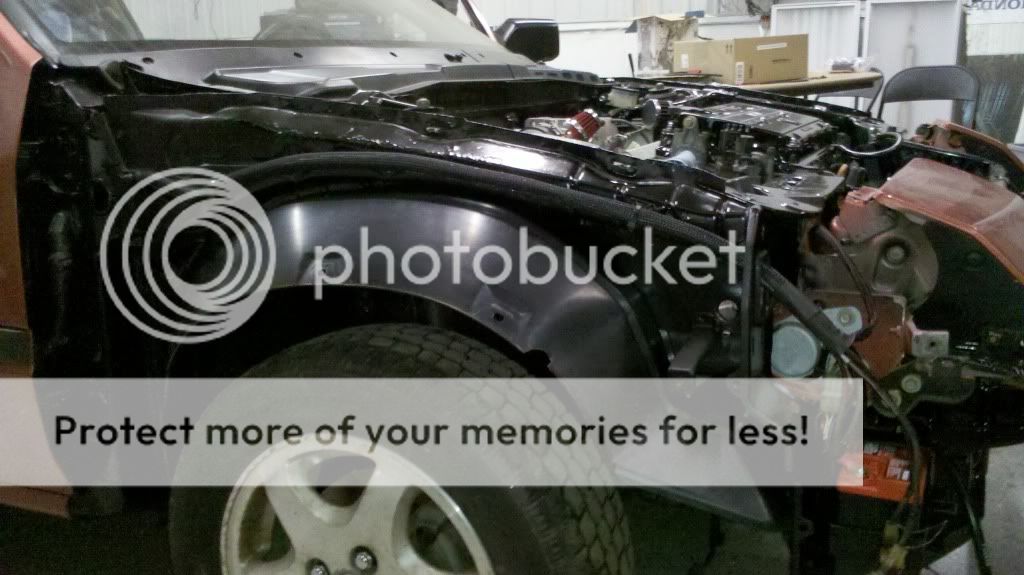

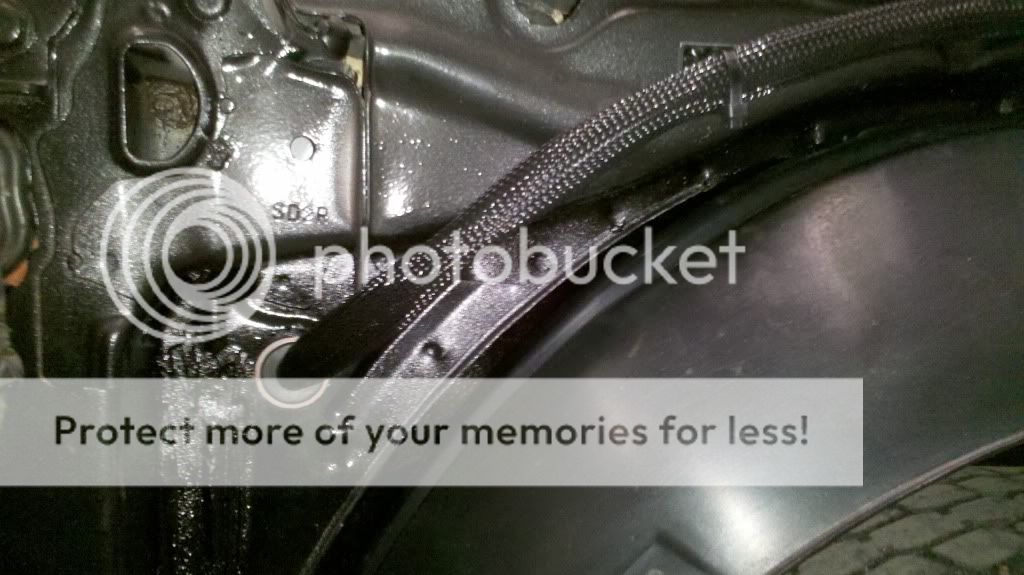

One side of the chassis harness routed around the fender rail:



________________________
1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN

Re: RaisedHaze's First Integration Rejuvenation

Postby Clindayen » March 3rd, 2013, 3:50 am

Great progress! It's looking crispy ;)
Got my license 8/11/12, Since then:
1990 DA9 Acura Integra GS (Sold)
1997 EJ8 Honda Civic EX (Sold)
1991 DA9 Acura Integra RS (Sold)
1992 DB2 Acura Integra GS-R (Out Of Commission atm)
1988 DA3 Acura Integra LS (Daily)
Clindayen
G1 n00b

Posts: 56
Joined: September 11th, 2012, 6:29 am
Location: Las Vegas, NV

Re: RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » March 15th, 2013, 1:12 pm

Clindayen wrote:Great progress! It's looking crispy ;)


Is crispy good or bad?
________________________
1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN

Re: RaisedHaze's First Integration Rejuvenation

Postby Clindayen » March 17th, 2013, 6:08 am

raisedhaze wrote:
Clindayen wrote:Great progress! It's looking crispy ;)


Is crispy good or bad?


To me, crispy is a 11 out of 10. So it's great! LOl.
Got my license 8/11/12, Since then:
1990 DA9 Acura Integra GS (Sold)
1997 EJ8 Honda Civic EX (Sold)
1991 DA9 Acura Integra RS (Sold)
1992 DB2 Acura Integra GS-R (Out Of Commission atm)
1988 DA3 Acura Integra LS (Daily)
Clindayen
G1 n00b

Posts: 56
Joined: September 11th, 2012, 6:29 am
Location: Las Vegas, NV

Re: RaisedHaze's First Integration Rejuvenation

Postby MugenBOI » March 18th, 2013, 2:05 pm

very nice i love how your car is coming out
User avatar
MugenBOI
Legit G1Tegger

Posts: 286
Joined: September 18th, 2012, 2:15 pm
Location: Santa Maria,Ca CENRTAL COAST

Re: RaisedHaze's First Integration Rejuvenation

Postby raisedhaze » March 21st, 2013, 11:41 pm

Clindayen wrote:
raisedhaze wrote:
Clindayen wrote:Great progress! It's looking crispy ;)


Is crispy good or bad?


To me, crispy is a 11 out of 10. So it's great! LOl.


In that case, THANKS!

I hope to get the turbo finalized this summer and get her painted this coming fall/winter. Should be a bundle of fun.
________________________
1986 Acura Integra Type-RS
B18C1 turbo swap
________________________
User avatar
raisedhaze
G1 n00b

Posts: 68
Joined: October 19th, 2012, 6:55 pm
Location: MN
