Fuse Box Diagrams

Postby MinkelR » September 16th, 2012, 6:39 pm

1986-1987

1988-1989

'88 LSSE
1987 Acura Integra LS (Rest in Pieces)
1989 Acura Integra LS Daily Driver
1992 Mazda 323 (Sold)
Top
User avatar

MugenBOI
Legit G1Tegger
Posts: 282
Joined: September 18th, 2012, 2:15 pm
Location: Santa Maria,Ca CENRTAL COAST

Re: Fuse Box Diagrams

Postby MugenBOI » July 27th, 2013, 2:33 pm

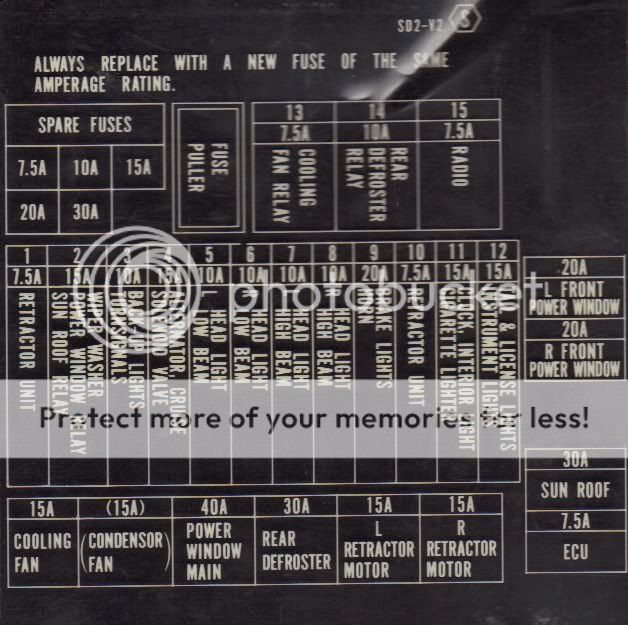

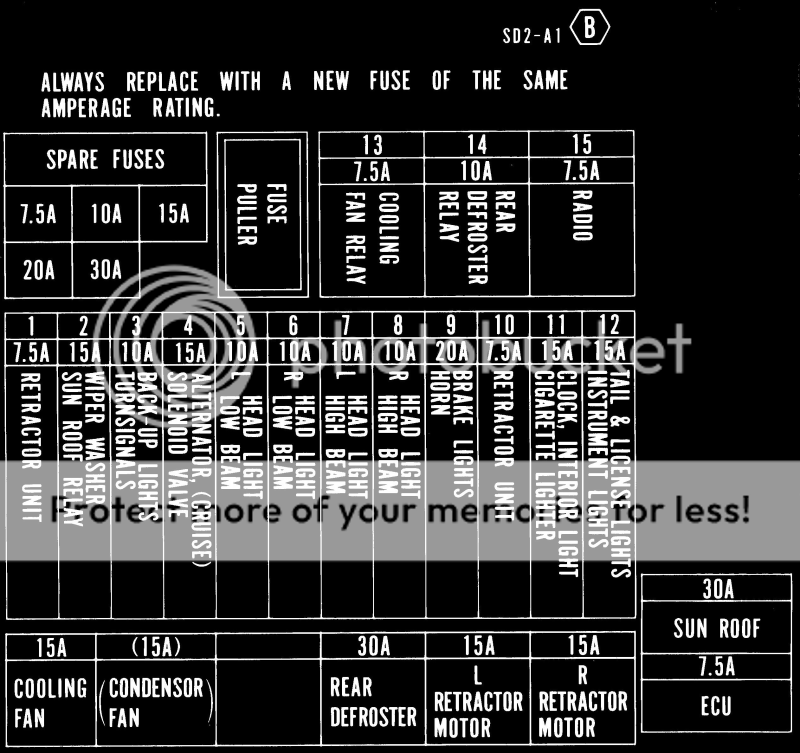

so what chart would i use for my 1988 Acura Integra LS Special Edition? just curious ...would that be '88 LSSE??
Top
User avatar

evtsteward
Site Admin & Crunkass Teg Mechanic
Posts: 847
Joined: January 28th, 2007, 7:05 pm
Location: Marysville, Wa 98270

Re: Fuse Box Diagrams

Postby evtsteward » July 27th, 2013, 5:04 pm

MugenBOI wrote:so what chart would i use for my 1988 Acura Integra LS Special Edition? just curious ...would that be '88 LSSE??

Yes sir!
:geek:
Robert, that crazy guy with all the tegs!
Always an honor to be quoted.-B18Ch1ck
The great ships hung in the air in much
the same way bricks don't.-Douglas Adams
The value of life can be measured by how many
times your soul has been deeply stirred.-Soichiro Honda
Top
User avatar

evtsteward
Site Admin & Crunkass Teg Mechanic
Posts: 847
Joined: January 28th, 2007, 7:05 pm
Location: Marysville, Wa 98270

Re: Fuse Box Diagrams

Postby evtsteward » July 27th, 2013, 5:07 pm

Wish we had the ones for the different levels of 5dr sedans, LS-RS, in here, these are only coupe versions. :?
Robert, that crazy guy with all the tegs!
Always an honor to be quoted.-B18Ch1ck
The great ships hung in the air in much
the same way bricks don't.-Douglas Adams
The value of life can be measured by how many
times your soul has been deeply stirred.-Soichiro Honda
Top

Capncrazy77
G1 n00b
Posts: 1
Joined: February 27th, 2018, 6:05 am

Re: Fuse Box Diagrams

Postby Capncrazy77 » March 2nd, 2018, 7:05 am

I can't see the picture of the 86 diagram because of the photobucket b.s, bit i had been hunting for a diagram and this is the only one i have found but i cant see it.
Top
